Tower

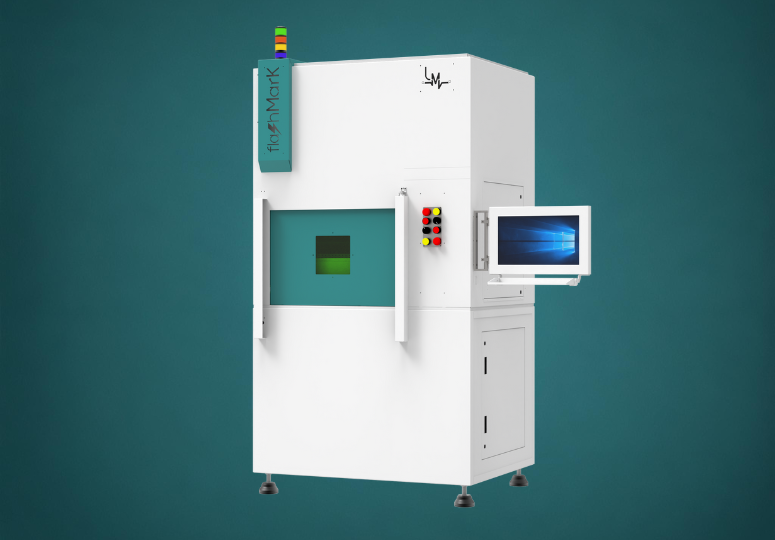

The “flashMark” Tower model is an enclosed and sturdy fully integrated system designed to mark and deep engrave bigger and heavier components. It is a customization friendly laser machine which can be integrated with movable head in all 3-axis if required. It is easy and safe to use in industries following high safety measures. Suited for complete traceability solutions like barcodes, data matrix codes, QR-codes, serial numbers and logos.

Technical Specifications

Laser Type Fiber laser and CO2
Laser Power 20 W – 200 W
Scanning speed 10,000 mm/sec
Mark 2D and 3D surfaces
Marking line Min 0.05 mm
Marking field 110 mm x 110mm to 330 mm x 330 mm
Enclosure Class 1 as per industrial standard
Machine dimension 1015*810*1840 mm

Features:

  • Automatic doors (Pneumatics)
  • Safety features – full interlock system to avoid accidents
  • Enhanced Environmental Protection
  • Auto and Manual option available
  • Superior repeatability
  • Rugged and Industry standard design
  • Equipped with Class 1 type of enclosed cabinet
  • laser safety protective window to manually observe and monitor laser marking
  • Marking mechanics software for user friendly operations
  • Dynamic Air cooling system
  • Motorized z axis (Optional)
  • Ultra hi-speed on static marking and Mark on the Fly
  • Compact and sturdy design
  • Suited for Standalone marking
  • Extremely fast hi-speed galvanometer with scanning speed of 10,000 mm/sec
  • 24/7 Non-stop marking
  • Easy production line integration
  • Fume Extractor (Optional)
  • Rotary Attachment (Optional)
  • X & Y Axis guides (Optional) for marking on bigger samples
  • This model is CE, FCC certified and also quality control in accordance with ISO 9001:2015 ( IAS-IAF) quality system standard
